SMA Terminations
SMA RF Terminations are precision coaxial microwave components designed to absorb RF signal power and eliminate unwanted reflections in high-frequency transmission lines. With standard 50 Ohm impedance and frequency capability up to 18 GHz, SMA Terminations are widely used in RF testing, calibration, telecommunications, aerospace, defense, satellite communication, radar systems, wireless communication, and microwave laboratory applications. Current RF termination specifications commonly include 50 Ohm impedance and operation up to 18 GHz for SMA interfaces.
At SRFS Teleinfra, we manufacture high-quality SMA RF Terminations engineered for excellent electrical performance, low VSWR, superior return loss, and reliable operation in demanding RF and microwave environments. Our precision terminations help prevent signal reflections from unused RF ports and maintain accurate signal integrity during testing, measurement, and communication applications.
Our SMA Terminations are manufactured using premium-quality materials, precision-machined connector bodies, high-performance dielectric materials, and reliable resistive elements. Depending on the design, SMA terminations can be available in different power-handling configurations for laboratory testing, RF calibration, production testing, and communication systems. Commercial SMA termination products are available with power ratings such as 1 W, 2 W and higher depending on the specific design.
All our SMA RF Terminations are manufactured in India under stringent quality control procedures using carefully selected raw materials and advanced manufacturing processes. Every product is designed to provide stable 50 Ohm impedance, low signal reflection, dependable mechanical performance, and long service life for telecom, aerospace, defense, satellite communication, radar, RF testing, and microwave applications.
What is an SMA RF Termination?
An SMA RF Termination is a precision 50 Ohm RF load used to terminate an unused coaxial port and absorb RF energy with minimum signal reflection. By providing a matched impedance at the end of a transmission line, an SMA termination helps maintain signal integrity and prevents unwanted reflections that can affect system performance.
SMA Terminations are commonly used with RF test equipment, signal generators, spectrum analyzers, Vector Network Analyzers (VNAs), couplers, splitters, amplifiers, filters, antennas, and other microwave components. Precision SMA terminations are available for applications extending to 18 GHz.
Types of SMA RF Terminations

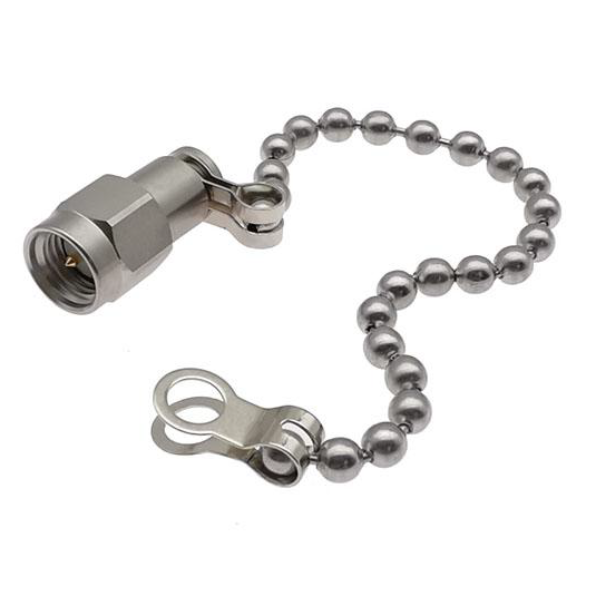

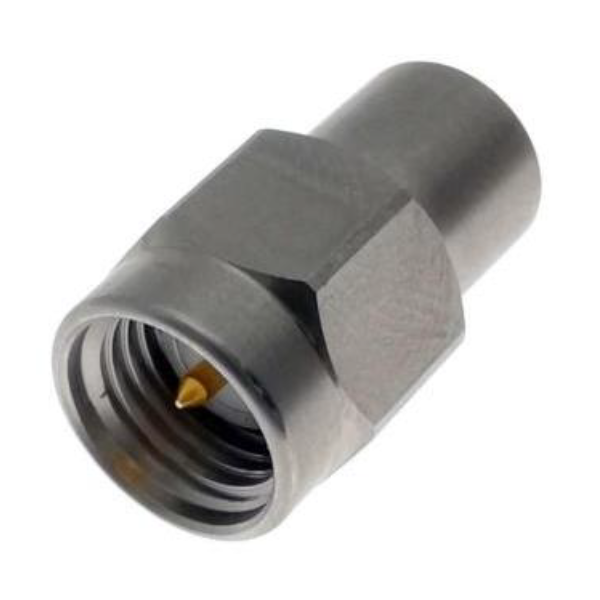

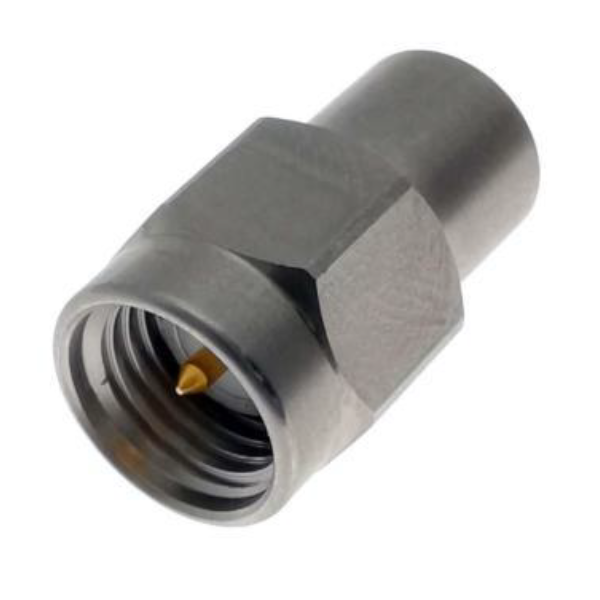

SMA Male RF Termination
Designed with an SMA male connector for terminating female RF ports. These terminations provide reliable 50 Ohm impedance matching and low signal reflection.

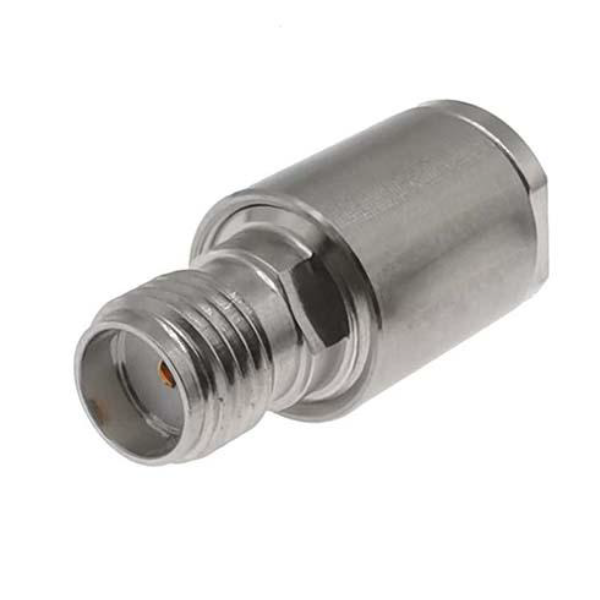

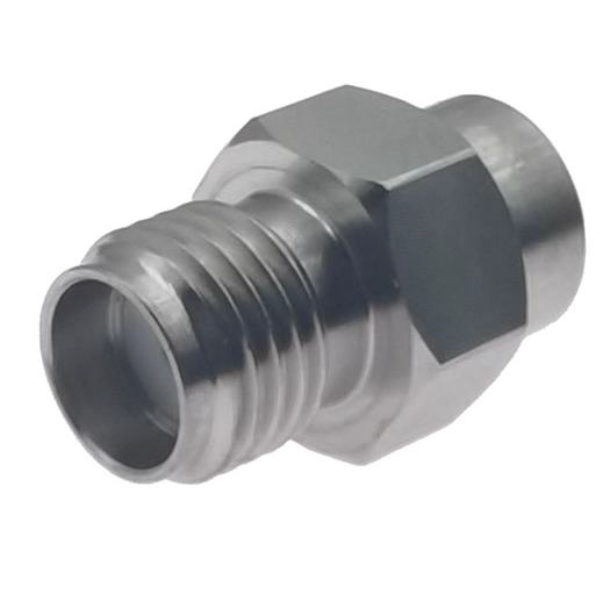

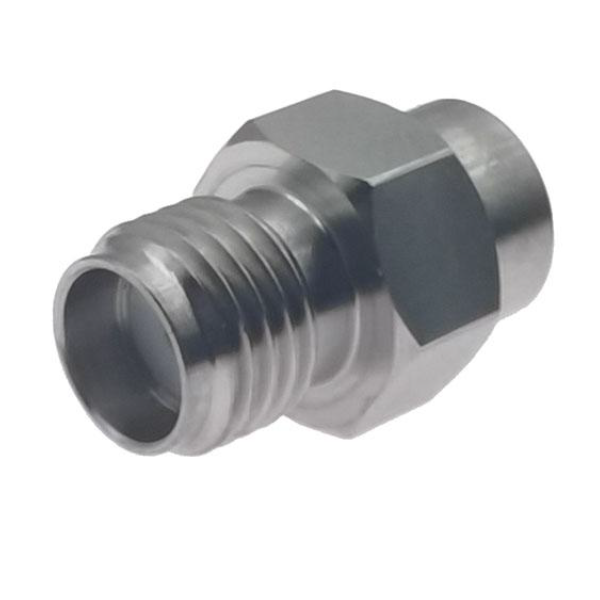

SMA Female RF Termination
Features an SMA female connector for terminating male RF ports and maintaining stable RF performance.
SMA Precision Microwave Termination
Manufactured with tight mechanical and electrical tolerances for RF laboratory testing, calibration, and precision measurement applications.
SMA Low Power Termination
Suitable for signal-level testing, RF measurements, calibration, instrumentation, and laboratory applications.

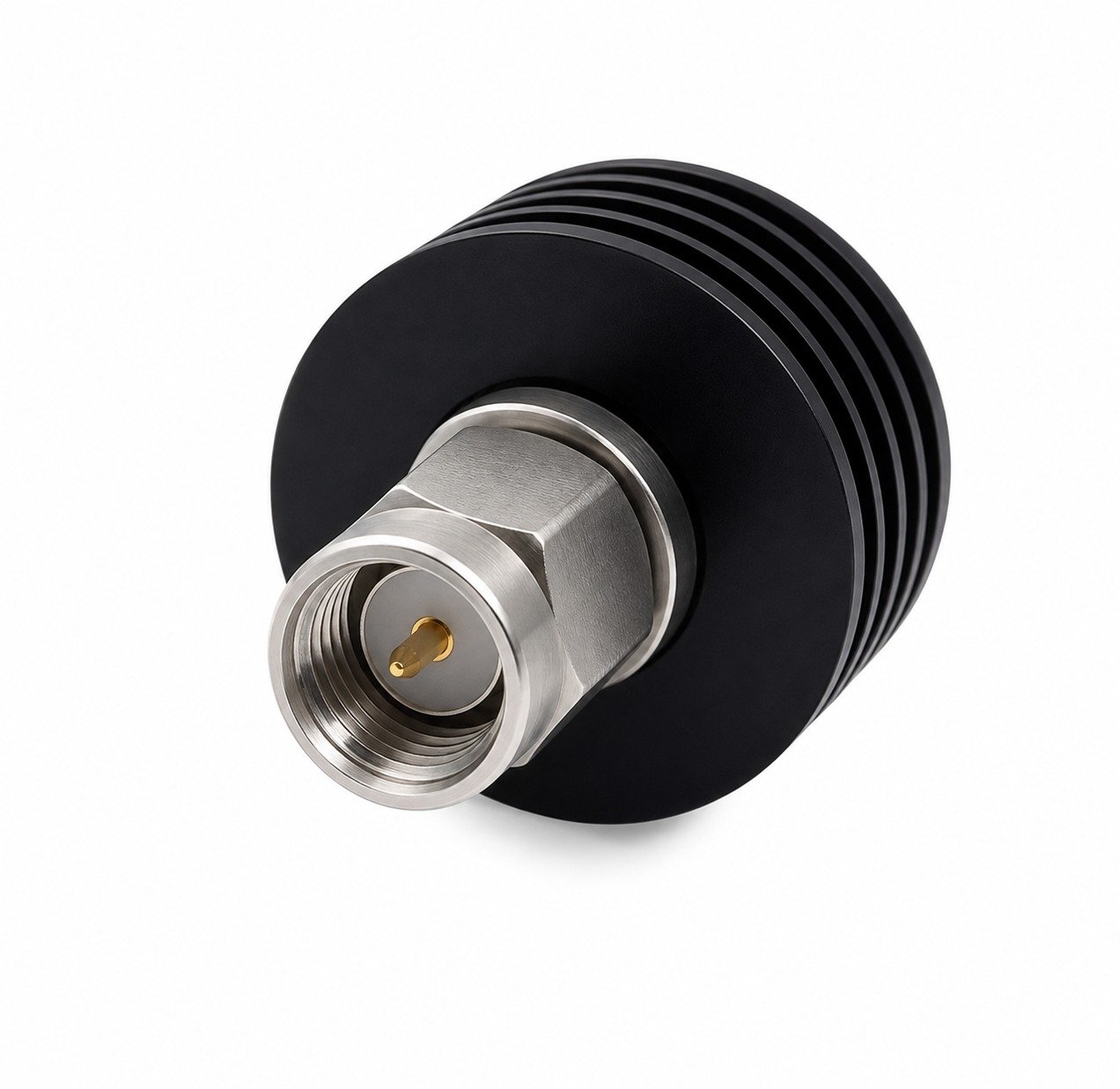

SMA High Power Termination
Designed to dissipate higher RF power while maintaining stable impedance and reliable thermal performance. Available power handling depends on the specific termination design.
SMA Dummy Load
An SMA Dummy Load is used to terminate unused RF outputs and safely absorb RF energy while minimizing reflections.
Technical Specifications
Our SMA RF Terminations are precision-engineered for dependable performance across RF and microwave applications.
Impedance
Standard 50 Ohm impedance for accurate impedance matching and minimal signal reflection.
Frequency Range
Available for applications from DC to 18 GHz, depending on the specific termination design.
Power Rating
Available in multiple power-handling options depending on application requirements. Typical commercial products are available in 1 W, 2 W and higher power configurations.
VSWR
Low VSWR helps minimize reflections and improve RF measurement accuracy. Specific VSWR performance depends on the selected model.
Connector Interface
Precision SMA connector interface designed for secure, repeatable RF connections.
Construction Material
Available with stainless steel or brass connector bodies, precision dielectric materials, and gold-plated RF contacts depending on the product configuration.
Operating Temperature
Available in configurations designed for standard industrial and laboratory operating environments. Custom temperature requirements can also be considered.
Compliance
Manufactured using precision RF engineering and quality-control procedures for dependable performance in telecom, aerospace, defense, laboratory, and industrial applications.
Applications of SMA RF Terminations
Our SMA RF Terminations are widely used in:
- Vector Network Analyzer (VNA) calibration
- RF and microwave laboratories
- RF production testing
- Spectrum analyzer testing
- Signal generator testing
- Aerospace communication systems
- Defense electronics
- Satellite communication
- Radar systems
- Wireless communication equipment
- Microwave communication
- RF amplifier testing
- Coupler and splitter testing
- Antenna testing
- Research & Development laboratories
- Test & measurement equipment
Key Performance Factors
Choosing the right SMA RF Termination helps maintain signal integrity and improve the accuracy of RF measurements.
- Precision 50 Ohm impedance
- Frequency operation up to 18 GHz
- Low VSWR
- Excellent return loss
- Multiple power-handling options
- Male and female connector configurations
- Precision SMA interface
- Reliable signal absorption
- Low signal reflection
- High mechanical durability
- Compact coaxial construction
- Reliable RF performance
A high-quality SMA RF Termination absorbs unwanted RF energy, minimizes signal reflections, protects connected RF equipment, and helps maintain accurate signal measurements across high-frequency RF and microwave systems.
Product Specifications
| Product Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| SMA Male RF Termination | 50 Ohm | DC to 18 GHz | Terminate Female RF Ports |
| SMA Female RF Termination | 50 Ohm | DC to 18 GHz | Terminate Male RF Ports |
| SMA Male Dummy Load | 50 Ohm | DC to 18 GHz | RF Testing & Calibration |
| SMA Female Dummy Load | 50 Ohm | DC to 18 GHz | Microwave Test Equipment |
| SMA Precision Microwave Termination | 50 Ohm | DC to 18 GHz | Vector Network Analyzer (VNA) |
| SMA Low Power Termination | 50 Ohm | DC to 18 GHz | Laboratory RF Measurements |
| SMA High Precision Termination | 50 Ohm | DC to 18 GHz | RF Measurement & Testing |
| SMA Coaxial Termination | 50 Ohm | DC to 18 GHz | Microwave Communication |
| SMA Precision Dummy Load | 50 Ohm | DC to 18 GHz | Signal Reflection Control |
| SMA Test Port Termination | 50 Ohm | DC to 18 GHz | RF Production Testing |
Why Choose us
Precision RF Performance
Our SMA RF Terminations are engineered for accurate impedance matching, reliable RF energy absorption, and stable microwave performance.
Low VSWR & Excellent Return Loss
Designed to minimize unwanted signal reflections and improve measurement accuracy across the operating frequency range.
Multiple Power Options
We offer different power-handling configurations to meet laboratory, telecom, aerospace, defense, and RF production requirements.
Precision Manufacturing
Our terminations are manufactured using precision machining, high-quality RF materials, and stringent inspection procedures to ensure consistent electrical and mechanical performance.
Frequently Asked Questions
An SMA RF Termination is a 50 Ohm coaxial RF load designed to absorb RF energy and minimize signal reflections from unused RF ports.
SMA RF Terminations are commonly available from DC to 18 GHz, depending on the specific model and design.
Standard SMA RF Terminations provide 50 Ohm impedance for accurate RF and microwave signal matching.
They are widely used in RF laboratories, VNA calibration, telecom equipment, aerospace, defense, radar, satellite communication, wireless systems, and RF production testing.
An SMA Dummy Load absorbs RF power from an unused port and prevents unwanted signal reflections, helping maintain signal integrity.
Yes. SMA Terminations are available in both male and female configurations for terminating corresponding RF ports.
Power ratings vary by design. Commercial SMA terminations are available in configurations such as 1 W, 2 W, 5 W and higher depending on the model.
Yes. Precision SMA Terminations are commonly used in RF testing, calibration, characterization, and measurement applications.
Yes. SRFS Teleinfra can provide customized SMA Terminations according to required frequency range, power rating, connector configuration, mechanical dimensions, and application requirements.
Yes. SRFS Teleinfra manufactures SMA RF Terminations in India using precision manufacturing processes and stringent quality-control procedures.
