SMP Terminations
SMP RF Terminations are compact, high-frequency coaxial components designed to absorb RF signal power and eliminate unwanted reflections in microwave transmission lines. Their miniature form factor makes them particularly suitable for high-density RF systems where space is limited while reliable signal termination and impedance matching remain essential. SMP Terminations are widely used in aerospace, defense, radar systems, satellite communication, telecommunications, RF testing, electronic warfare, and advanced microwave applications.
At SRFS Teleinfra, we manufacture high-quality SMP RF Terminations engineered for stable 50 Ohm impedance, low VSWR, excellent return loss, and reliable high-frequency performance. Their compact push-on interface makes them suitable for applications requiring fast installation, high connection density, and dependable RF performance.
Our SMP Terminations are manufactured using premium RF materials, precision-machined connector bodies, high-performance dielectric materials, and advanced manufacturing processes. They are ideal for Vector Network Analyzers (VNAs), RF test equipment, microwave instruments, radar systems, aerospace electronics, military communication systems, and compact RF modules.
All our SMP RF Terminations are manufactured in India under stringent quality control procedures using carefully selected raw materials and precision manufacturing technology. Each product is designed to provide reliable signal absorption, minimize reflections, and maintain consistent electrical performance in demanding RF and microwave environments.
What is an SMP RF Termination?
An SMP RF Termination is a miniature 50 Ohm RF load designed to absorb unwanted RF energy and terminate unused ports in high-frequency transmission systems. By providing a matched impedance at the end of a transmission line, it minimizes signal reflections and helps maintain signal integrity.
SMP connectors are known for their compact size and push-on coupling mechanism, making them especially suitable for high-density applications where conventional RF connectors may occupy excessive space.
SMP RF Terminations are commonly used in aerospace and defense electronics, phased-array antennas, radar systems, satellite communication, RF modules, test equipment, and microwave laboratories.
Types of SMP RF Terminations
SMP Male RF Termination
Designed with a male SMP interface for terminating female RF ports while providing accurate impedance matching and reliable microwave performance.

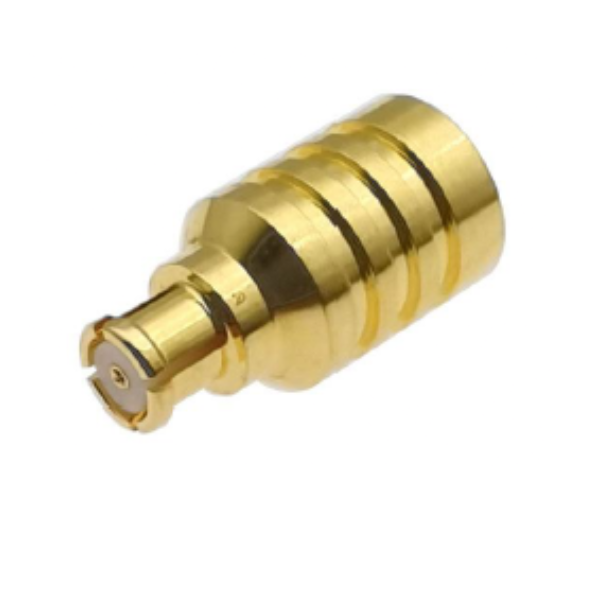

SMP Female RF Termination
Features a female SMP interface for terminating male RF ports in compact RF and microwave systems.
SMP Precision Microwave Termination
Manufactured with tight electrical and mechanical tolerances for high-accuracy RF testing, calibration, and measurement applications.
SMP Low Power Termination
Suitable for low-power RF testing, signal measurements, laboratory applications, and compact electronic systems.
SMP High Power Termination
Designed for applications requiring higher RF power handling while maintaining stable impedance and dependable signal absorption.
SMP Dummy Load
Used to terminate unused RF ports and absorb RF energy to minimize unwanted reflections in communication and test systems.
Technical Specifications
Our SMP RF Terminations are engineered for dependable performance in compact high-frequency RF and microwave systems.
Impedance
Standard 50 Ohm impedance for accurate impedance matching and minimum signal reflection.
Frequency Range
Available in configurations supporting high-frequency RF and microwave applications. The maximum frequency depends on the specific SMP termination design and connector configuration.
Power Rating
Available in different power-handling configurations according to application requirements.
VSWR
Low VSWR helps reduce signal reflections and provides improved RF measurement accuracy.
Return Loss
Excellent return loss provides effective signal absorption and improved system performance.
Connector Interface
Precision SMP connector interface with compact push-on coupling for quick and repeatable RF connections.
Construction Material
Manufactured using high-quality stainless steel, precision RF contacts, dielectric materials, and corrosion-resistant components depending on product configuration.
Operating Temperature
Available in configurations designed for reliable operation across a wide range of environmental conditions.
Applications of SMP RF Terminations
Our SMP RF Terminations are widely used in:
- Aerospace electronics
- Defense communication systems
- Radar systems
- Electronic warfare equipment
- Satellite communication
- Phased-array antenna systems
- RF and microwave laboratories
- Vector Network Analyzer testing
- RF production testing
- Microwave test equipment
- Compact RF modules
- High-density interconnect systems
- Wireless communication equipment
- Research & Development laboratories
- High-frequency communication systems
Key Performance Factors
Selecting the right SMP RF Termination helps maintain reliable RF performance in compact and high-density systems.
- Precision 50 Ohm impedance
- Compact miniature design
- High-frequency RF performance
- Low VSWR
- Excellent return loss
- Reliable RF energy absorption
- Push-on connector interface
- Fast and repeatable connections
- High mechanical durability
- Lightweight construction
- Space-saving design
- Stable electrical performance
- Multiple power-handling options
High-quality SMP RF Terminations minimize unwanted signal reflections, improve RF system stability, and provide reliable termination for aerospace, defense, radar, satellite communication, telecom, and advanced microwave applications.
SMP RF Termination Specifications
| Product Type | Impedance | Frequency Range | Application |
|---|---|---|---|

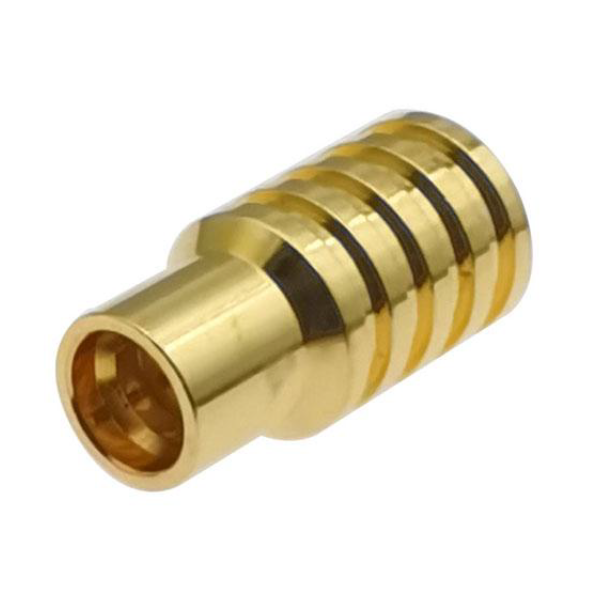

| SMP Male RF Termination | 50 Ohm | DC to 40 GHz | Terminate Female RF Ports |

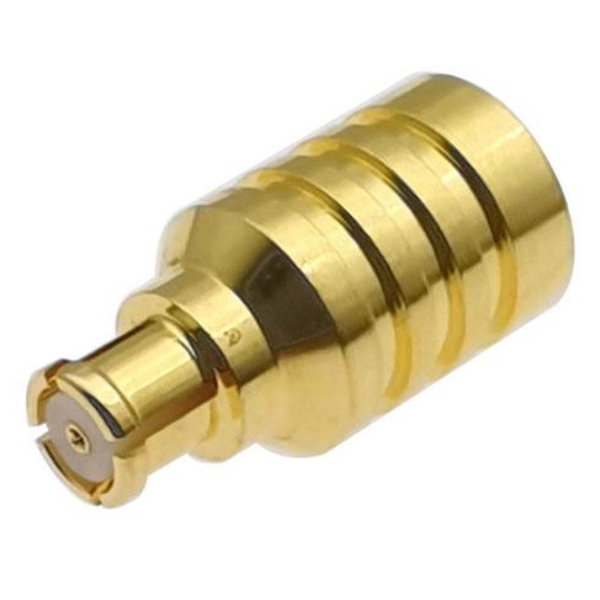

| SMP Female RF Termination | 50 Ohm | DC to 40 GHz | Terminate Male RF Ports |
| SMP Male Dummy Load | 50 Ohm | DC to 40 GHz | RF Testing & Calibration |
| SMP Female Dummy Load | 50 Ohm | DC to 40 GHz | Microwave Test Equipment |
| SMP Precision Microwave Termination | 50 Ohm | DC to 40 GHz | Vector Network Analyzer (VNA) |
| SMP Low Power Termination | 50 Ohm | DC to 40 GHz | Laboratory RF Measurements |
| SMP High Precision Termination | 50 Ohm | DC to 40 GHz | Aerospace & Defense Electronics |
| SMP Coaxial Termination | 50 Ohm | DC to 40 GHz | High-Density RF Systems |
| SMP Precision Dummy Load | 50 Ohm | DC to 40 GHz | Signal Reflection Control |
| SMP Test Port Termination | 50 Ohm | DC to 40 GHz | RF Production Testing |
Why Choose us
Compact High-Frequency Performance
Our SMP RF Terminations combine miniature construction with dependable RF and microwave performance, making them ideal for space-constrained systems.
Low VSWR & Excellent Return Loss
Designed to minimize unwanted reflections and provide reliable signal absorption across the operating frequency range.
High-Density RF Connectivity
The compact SMP interface allows efficient integration into systems requiring a large number of RF connections within limited physical space.
Manufactured in India
All our SMP RF Terminations are manufactured in India using advanced production processes and carefully selected materials, providing reliable performance, competitive pricing, and dependable supply.
Frequently Asked Questions
An SMP RF Termination is a compact 50 Ohm RF load designed to absorb RF energy and minimize unwanted reflections in high-frequency transmission systems.
SMP Terminations are widely used in aerospace, defense, radar, satellite communication, phased-array antennas, RF testing, microwave laboratories, and high-density RF modules.
SMP RF Terminations are generally manufactured with a standard 50 Ohm impedance.
They are widely used in semiconductor testing, RF laboratories, aerospace, defense, radar systems, satellite communication, 5G/6G research, and millimeter-wave measurement systems.
The SMP connector provides a compact, lightweight, push-on RF interface that is well suited to high-density applications where installation space is limited.
Yes. SMP Terminations can be supplied in male and female configurations depending on the RF port being terminated.
Yes. Precision SMP Terminations can be used for RF testing, calibration, characterization, and microwave measurement applications when their electrical specifications match the test system.
Power handling depends on the specific termination design. Multiple power configurations can be provided according to application requirements.
Yes. SRFS Teleinfra can manufacture customized SMP Terminations according to required electrical specifications, power ratings, connector configuration, and mechanical dimensions.
SRFS Teleinfra provides precision-engineered SMP RF Terminations with reliable electrical performance, compact construction, customized solutions, quality manufacturing, competitive pricing, and technical support for aerospace, defense, telecom, RF testing, and microwave applications.
