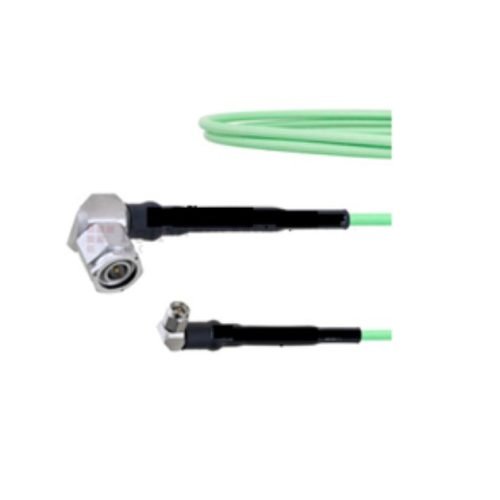

Low Loss RA SMA Male to RA TNC Male Cable LL160 Coax is a high-performance RF cable assembly designed for reliable signal transmission in demanding communication and electronic applications. Featuring right-angle SMA Male and TNC Male connectors, it provides convenient installation and efficient connectivity in space-constrained equipment layouts. Its low-loss construction helps minimize signal attenuation while maintaining excellent signal integrity and stable electrical performance. LL160 Coax is suitable for wireless communication, RF testing, telecommunications, antennas, networking equipment, and electronic systems. Its flexible design and dependable connectors make it a practical solution for professional RF applications.
| Cable Type | LL160 |
| Impedance | 50 Ohms |
| Inner Conductor Type | Solid |
| Inner Conductor Material and Plating | Copper, Silver |
| Dielectric Type | PTFE |
| Number of Shields | 3 |
| Shield Layer 1 | Silver Plated Copper Tape |
| Shield Layer 2 | Aluminum Polyester |
| Shield Layer 3 | Silver Plated Copper Wire |
| Jacket Material | FEP |
| Jacket Diameter | 0.16 in [4.06 mm] |
| Repeated Minimum Bend Radius | 0.8 in [20.32 mm] |
| Frequency Range | DC-18 GHz |
| Characteristic Impedance | 50 ohms |
| VSWR | 1.35:1 |
| Insertion Loss (Typ.) | 0.46 [1.51] dB/ft [dB/m] |
| Velocity of Propagation | 82.5% |
| RF Shielding | -90 dB |
| Capacitance | 25 [82.02] pF/ft [pF/m] |
| Type | RA SMA Male | RA TNC Male |
|---|---|---|
| Impedance | 50 Ohms | 50 Ohms |
| Contact Material & Plating | Beryllium Copper, Gold | Beryllium Copper, Gold |
| Dielectric Type | PTFE | PTFE |
| Coupling Nut Material & Plating | Passivated Stainless Steel | Passivated Stainless Steel |
| Body Material & Plating | Passivated Stainless Steel | Passivated Stainless Steel |
| Operating Range | -55 to +165 degree C | -55 to +165 degree C |
