Low Loss SMA Male to SMA Male Cable LL160 Coax and RoHS

Low Loss SMA Male to SMA Male Cable LL160 Coax and RoHS

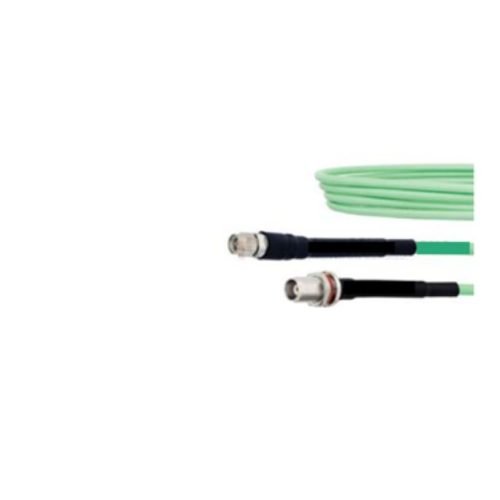

Low Loss SMA Male to SMA Male Cable LL160 Coax is a reliable RF cable assembly designed for efficient signal transmission in demanding high-frequency applications. Its low-loss construction helps minimize signal attenuation while maintaining excellent signal integrity and stable electrical performance. Equipped with SMA male connectors at both ends, it provides secure and convenient connectivity with compatible RF equipment. The cable is suitable for telecommunications, wireless communication, RF testing, laboratory instruments, networking equipment, and electronic systems. With RoHS-compliant construction, LL160 Coax offers dependable performance, flexible installation, and reliable connectivity for professional RF applications.

Cable

CABLE
Cable Type LL160
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 3
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper
Jacket Material FEP
Jacket Diameter 0.16 in [4.06 mm]
Repeated Minimum Bend Radius 0.8 in [20.32 mm]

Electrical Specifications

Electrical Specifications
Frequency Range DC-18GHz
Characteristic Impedance 50 ohms
VSWR 1.35:1
Insertion Loss (Typ.) 0.46 [1.51] dB/ft [dB/m]
Velocity of Propagation 83%
RF Shielding 95 dB
Capacitance 25 [82.02] pF/ft [pF/m]

Connectors

Type SMA Male SMA Male
Impedance 50 Ohms 50 Ohms
Contact Material & Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Body Material & Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Material & Plating Passivated Stainless Steel Passivated Stainless Steel
Operating Range -55 to +165 degree C
