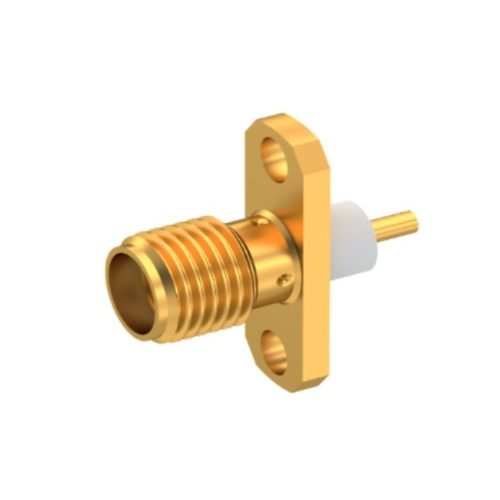

The SMA Female 2 Hole Connector is a compact and reliable RF connector designed for secure, high-frequency signal connections in communication and electronic systems. Featuring a two-hole mounting configuration, it provides stable panel or PCB installation and helps ensure dependable mechanical performance. Its SMA interface supports excellent electrical connectivity, low signal loss, and consistent RF performance across demanding applications. This connector is suitable for RF equipment, antennas, wireless communication systems, test and measurement instruments, networking devices, and microwave assemblies. Its robust construction makes it ideal for professional applications requiring durable and precise RF connectivity.
| Temperature Range | -40°C~+85°C |
| RoHS | Compliant Yes |
| Frequency Range | DC-12.4 GHz |
| VSWR (max) | ≤1.10 @ DC-3GHz |
| Dielectric Withstanding Voltage | 1000Vrms, 50 Hz at sea level |
| Working Voltage | 335V RMS, 50Hz, at sea level |
| Characteristic Impedance | 50 Ω |
| Contact Resistance |
Center Contact ≤3.0mΩ Outer Contact ≤2.5mΩ |
| Dielectric Resistance | ≥5000MΩ |
| Durability | Mating Cycles ≥500 |
| Body | Brass | Au |
| Insulator | PTFE(Teflon) | – |
| Center conductor | Phosphor bronze | Au |
