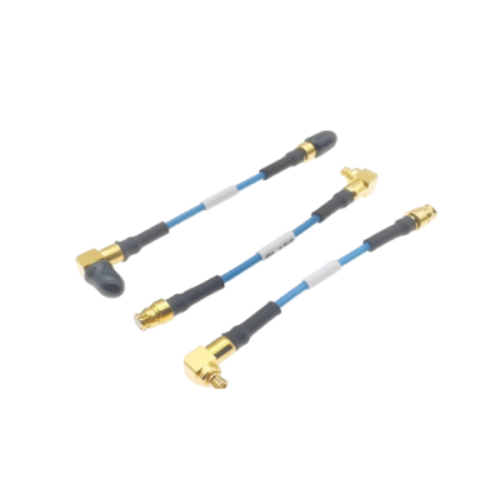

SMP Female to SMP Female Right Angle Cable Assembly for LP220
The SMP Female to SMP Female Right Angle Cable Assembly for LP220 is a precision RF interconnect designed for reliable signal transmission in compact and space-constrained applications. Featuring SMP female connectors with right-angle configuration, this cable assembly provides excellent flexibility and convenient routing while minimizing installation space. It is suitable for high-frequency RF, microwave, wireless communication, test and measurement, and telecom applications. Engineered for stable electrical performance, low signal loss, and dependable connectivity, the assembly supports efficient integration with LP220 systems and other compatible RF equipment. Its robust construction ensures consistent performance in demanding operating environments.
Configuration
| Connector 1 | SMP female | Connector 2 | SMP female right angle |
| Body | Gold plated BeCu | Body | Gold plated BeCu |
| Center Contact | Gold plated BeCu | Center Contact | Gold plated BeCu |
| Cable Type | LP220 |
Construction
| No. | Construction | Size (mm) | Materials |
|---|---|---|---|
| 1 | Center Conductor | 0.51 | Solid silver-plated copper |
| 2 | Dielectric | 1.43 | Ultra-low density PTFE |
| 3 | Outer Conductor | 1.55 | Silver-plated copper tape wrap |
| 4 | Outer Shield | 1.85 | Silver-plated copper wire braid |
| 5 | Jacket | 2.20 | FEP |
Electrical
| Frequency | DC-40 GHz |
| Impedance | 50 Ω |
| *VSWR Max | 1.55-1.6 |
| *IL Max (0.1 meter assembly) | 1.44dB |
| **Mechanical Phase Stability | <±5° |
| Amplitude Stability vs Shaking | <±0.15dB |
Mechanical & Environmental
| Min. Bending Radius Static | 11mm |
| Min. Bending Radius Repeated | 22mm |
| Velocity of Propagation | 81% |
| Temperature (Operation) | -50~105 °C |
| Temperature (Storage) | -60~105 °C |
Bulk Cable Attenuation
| Frequency MHz | 300 | 1000 | 2000 | 3000 | 6000 | 12000 | 18000 | 26500 | 30000 | 40000 | 50000 | 67000 |
| dB/100 Meter | 34.3 | 63.3 | 90.3 | 111.3 | 159.8 | 230.7 | 286.9 | 354.3 | 379.4 | 445.2 | 504.8 | 596.4 |
| Avg. Power kW | 0.510 | 0.277 | 0.194 | 0.157 | 0.110 | 0.076 | 0.061 | 0.049 | 0.046 | 0.039 | 0.035 | 0.029 |
