Low Loss RA SMA Male to TNC Male Cable LL160 Coax and RoHS

Low Loss RA SMA Male to TNC Male Cable LL160 Coax and RoHS

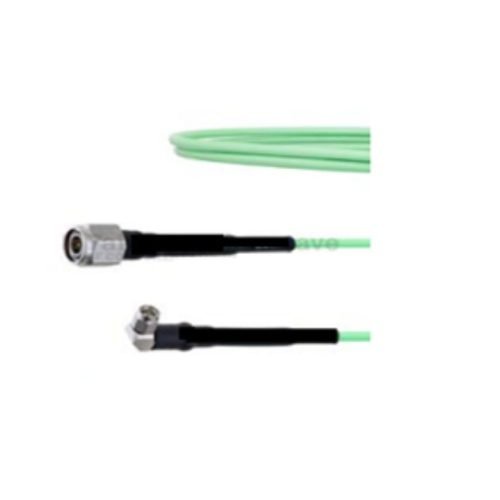

Low Loss RA SMA Male to TNC Male Cable LL160 Coax and RoHS is a reliable RF cable assembly designed for efficient signal transmission in wireless and communication systems. Its low-loss construction helps minimize attenuation while maintaining stable signal integrity across demanding RF applications. The right-angle SMA male to TNC male configuration supports convenient equipment connectivity and installation in space-constrained setups. RoHS compliance makes it suitable for environmentally conscious applications. LL160 coaxial cable is ideal for antennas, wireless networks, telecom equipment, RF testing, instrumentation, and electronic systems requiring dependable performance and flexible connectivity.

Cable

Cable Type LL160
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 3
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper Wire
Jacket Material FEP
Jacket Diameter 0.16 in [4.06 mm]
Repeated Minimum Bend Radius 0.8 in [20.32 mm]

Electrical Specifications

Frequency Range DC-18GHz
Characteristic Impedance 50 ohms
VSWR 1.35:1
Insertion Loss (Typ.) 0.46 [1.08] dB/ft [dB/m]
Velocity of Propagation 82.5%
RF Shielding -90 dB
Capacitance 25 [82.02] pF/ft [pF/m]

Connectors

Type SMA Male TNC Male
Impedance 50 Ohms 50 Ohms
Contact Material & Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Body Material & Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Material & Plating Passivated Stainless Steel Passivated Stainless Steel
Operating Range -55 to +165 degree C
