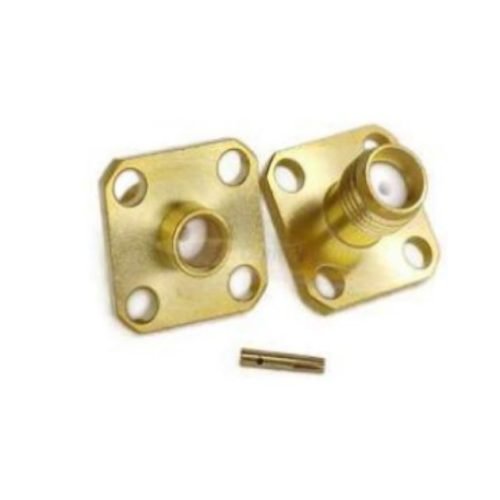

The SMA Female 4 Hole Connector for RG141 SUCO is a precision RF connector designed for secure and reliable connections in high-frequency coaxial cable assemblies. Engineered for compatibility with RG141 SUCO cable, it provides excellent electrical performance, mechanical stability, and consistent signal transmission. The four-hole flange mounting configuration enables secure installation on panels, enclosures, and RF equipment. Its durable construction supports demanding communication, microwave, laboratory, and test applications. This SMA female connector is suitable for RF systems requiring dependable connectivity, compact installation, and stable performance in professional electronic and communication environments.
| Frequency Range | DC-18 GHz |
| VSWR (max) | ≤1.15 @ DC-6GHz |
| Dielectric Withstanding Voltage | ≥1000Vrms, 50Hz at sea level |
| Working Voltage | 335V RMS, 50Hz, at sea level |
| Characteristic Impedance | 50 Ω |
| Contact Resistance |
Center Contact ≤3mΩ Outer Contact ≤2.5mΩ |
| Dielectric Resistance | ≥5000MΩ |
| Durability | Mating Cycles ≥500 |
| Material | Plating | |
|---|---|---|
| Body | Brass | Ni |
| Insulator | PTFE (Teflon) | – |
| Center conductor | Phosphor Copper | Au |
| Environmental Specifications | |
|---|---|
| Temperature Range | -40°C~+85°C |
| Humidity | 5~95 % |
| RoHS | Compliant Yes |
