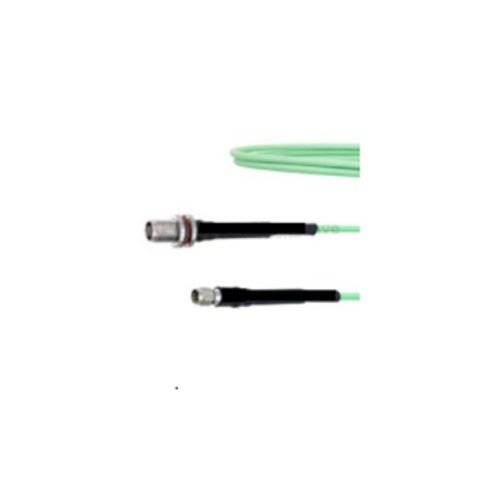

Low Loss SMA Male to TNC Male Cable LL160 Coax is a reliable RF cable assembly designed for efficient signal transmission and secure connectivity between compatible RF equipment. Featuring SMA male and TNC male connectors, it provides convenient integration for wireless and communication systems. Its low-loss coaxial construction helps minimize signal attenuation while maintaining stable signal integrity and dependable electrical performance. The cable is suitable for antennas, wireless networks, telecommunications, RF equipment, test and measurement systems, and networking applications. Its durable construction supports reliable operation and easy installation in professional RF and communication environments.
| Cable Type | LL160 |
| Impedance | 50 Ohms |
| Inner Conductor Type | Solid |
| Inner Conductor Material and Plating | Copper, Silver |
| Dielectric Type | PTFE |
| Number of Shields | 3 |
| Shield Layer 1 | Silver Plated Copper Tape |
| Shield Layer 2 | Aluminum Polyester |
| Shield Layer 3 | Silver Plated Copper Wire |
| Jacket Material | FEP |
| Jacket Diameter | 0.16 in [4.06 mm] |
| Repeated Minimum Bend Radius | 0.8 in [20.32 mm] |
| Frequency Range | DC-18GHz |
| Characteristic Impedance | 50 ohms |
| VSWR | 1.35:1 |
| Insertion Loss (Typ.) | 0.46 [1.51] dB/ft [dB/m] |
| Velocity of Propagation | 82.5% |
| RF Shielding | -90 dB |
| Capacitance | 25 [82.02] pF/ft [pF/m] |
| CONNECTORS | CONNECTOR 1 | CONNECTOR 2 |
|---|---|---|
| Type | SMA Male | TNC Female |
| Mount Method | Bulkhead | |
| Impedance | 50 Ohms | 50 Ohms |
| Contact Material & Plating | Beryllium Copper, Gold | Beryllium Copper, Gold |
| Dielectric Type | PTFE | PTFE |
| Outer Cond Material & Plating | Passivated Stainless Steel | |
| Body Material & Plating | Passivated Stainless Steel | Passivated Stainless Steel |
| Coupling Nut Material & Plating | Passivated Stainless Steel | |
| Operating Range | -55 to +165 degree C |
