What is RG213 Cable?
RG 213 cable is a widely used coaxial cable that finds applications in various industries. Its robust construction and excellent performance make it a prefer choice for high-frequency transmission and communication systems. In this article, we will delve into the specifications, construction, types, and applications of RG 213 cable.
RG 213 Cable Specifications

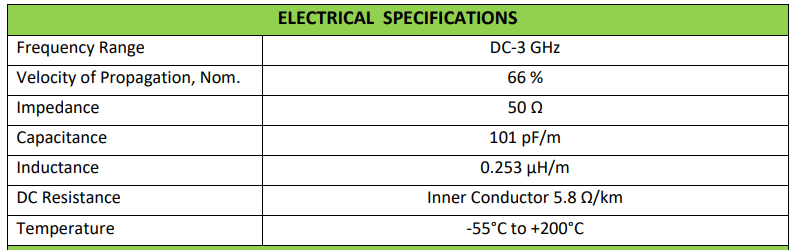

RG cable is known for its high-quality specifications, making it suitable for demanding applications. Here are some key specifications:
a) Impedance: RG cable typically has a characteristic impedance of 50 ohms, ensuring efficient signal transmission over long distances.
b) Frequency Range: It is design to support a wide frequency range, typically up to 2 GHz, making it suitable for various communication systems.
c) Attenuation: RG cable exhibits low attenuation, allowing signals to travel over significant distances without significant loss.
d) Capacitance: It has a moderate capacitance, which helps in minimizing signal distortion and maintaining signal integrity.
RG 213 Cable Construction

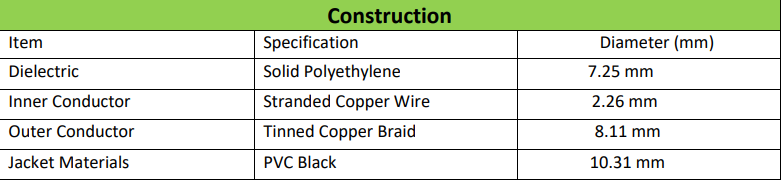

The construction of RG cable plays a crucial role in its performance and durability. It consists of several layers, each serving a specific purpose. The typical construction of RG 213 cable includes:
a) Inner Conductor: The inner conductor is made of solid or stranded copper, providing excellent electrical conductivity and low resistance.
b) Dielectric: A layer of high-quality insulation material, such as polyethylene or foam polyethylene, surrounds the inner conductor. The dielectric helps maintain the characteristic impedance and prevents signal loss.
c) Shielding: RG cable features a double layer shielding for enhanced signal protection. The first layer consists of a braided shield made of copper or aluminium, providing effective electromagnetic interference (EMI) shielding. Or The second layer comprises a foil shield, further enhancing signal integrity.
d) Outer Jacket: The outer jacket is make of a durable material like PVC or polyethylene, providing mechanical protection and insulation against environmental factors such as moisture and abrasion.
Types of RG 213 Cable
RG cable is available in different variations to suit specific applications. Some common types include:
a) RG 213/U: This is the most common type of RG cable and is suitable for general-purpose applications, including radio frequency (RF) transmission and antenna connections.
b) RG 213/MIL-C-17: This type meets the military specification MIL-C-17 and is designed for rugg environments where reliability and durability are crucial.
RG 213 Cable Applications
RG cable finds applications across various industries due to its excellent electrical performance and durability. Some common applications include:
a) Telecommunications: RG cable is extensively use in telecommunications infrastructure, including base stations, antennas, and wireless communication systems.
b) Broadcast Industry: It is widely employe in broadcasting applications, such as radio and television transmission, ensuring reliable signal delivery.
c) Industrial Sector: RG cable is use in industrial settings for data transmission, control systems, and instrumentation, thanks to its ability to withstand harsh environments.
d) Military and Defense: Due to its rugg construction, RG cable is suitable for military and defense applications, including radar systems, tactical communications, and aerospace equipment.
Conclusion
RG 213 cable is a versatile coaxial cable widely recognize for its excellent performance and reliability. Whether in telecommunications, broadcasting, industrial settings, or military and defense. RG cable consistently delivers efficient signal transmission, making it a preferred option for professionals in the field.
